Module Description

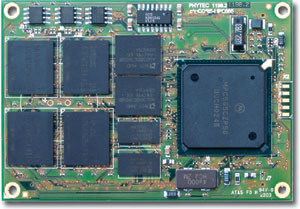

The phyCORE-MPC565 module integrates the 32-Bit Freescale MPC565 PowerPC microcontroller on an advanced PCB layout. All applicable controller signals extend to two 200-pin, high-density Molex connectors. In addition to the on-chip Flash (1 MB), the phyCORE-MPC565 can be populated with up to 8 MB of asynchronous standard Flash and 16 MB of synchronous Burst-SRAM, addressable without wait-states. The phyCORE-MPC565 can is especially suited for applications requiring processing of calculation-intensive algorithms. The MPC565's integrated 64-bit Floating Point Unit (FPU) enables hardware-level execution of elementary operations with single or double precision floating point numbers. Other controller features supported by the module include three on-chip CAN controllers; four UARTs; two SPI interfaces; 40 channel 10-bit A/D converters; two Timer/PWM systems and three Time Processing Units that process microcode independently of the PowerPC core. These features allow implementation of the phyCORE-MPC565 in a wide range of embedded applications.
Module Features
32-Bit Freescale MPC565 PowerPC microcontroller on an advanced PCB layout in subminiature dimensions (84 x 57mm)
Controller and board-level signals extend to two high-density (0.635 mm) 200-pin Molex connectors on underside of SBC
On-board memory:
SRAM: 1 to 16 MB Flow-Through synchronous Burst-SRAM, 32-bit organization, 0 wait states, 2-1-1-1 Burst mode
FLASH: 2 to 4 MB synchronous Burst-Flash, 32-bit organization, 2 to 8 MB standard Burst-Flash, 32-bit organization
Serial: 4 to 32 KB I²C EEPROM (alternatively I²C SRAM, I²C FRAM)
10 Mbit/s Ethernet CS8900A controller (I/O mode)
I²C Real-Time Clock with calendar and alarm function
4x UART interfaces, each with 4 /CS signals
J1850 interface
3x CAN interfaces: 82C251 CAN transceiver for two channels; also configurable as TTL
BDM/Nexus Test/debug interface
Industrial temperature range (-40° to +85° C )
MTBF = 1,185,624 hours
Development Kits
Development Kits using the phyCORE-MPC565 module are available.

Each kit contains an SBC module mounted on an applicable Carrier Board that features all hardware needed for immediate start-up of the module, as well as external break-out of applicable signals from the SBC. The included PHYTEC Spectrum CD-ROM provides complete electronic documentation, demo programs and evaluation software development tools.

PHYTEC Rapid Development Kits truly offer a Rapid Development solution by providing you with all the necessary ingredients with which to jump start your embedded design, reduce time-to-market and propel your concept to prototype and finished product.
